Description
- Before You BuyThe KUTENG ebike controller uses the KT communication protocol, which is only compatible with KT brand display (KT-LCD3 LCD4 LCD5 LCD6 LCD7 LCD8). Please check your controller nameplate before placing an order.
- Consistent QualityThe controller board is very stable, using 12 enhance stable Moss tubes, which can withstand a maximum current of 35A in a short time. When the temperature is too high, the controller will cut off the current to protect the safety of the entire system.
- Good Heat DissipationThe controller shell is made of aluminum alloy with grooves, and the good heat dissipation can protect the wires from damage and avoid thermal overload.

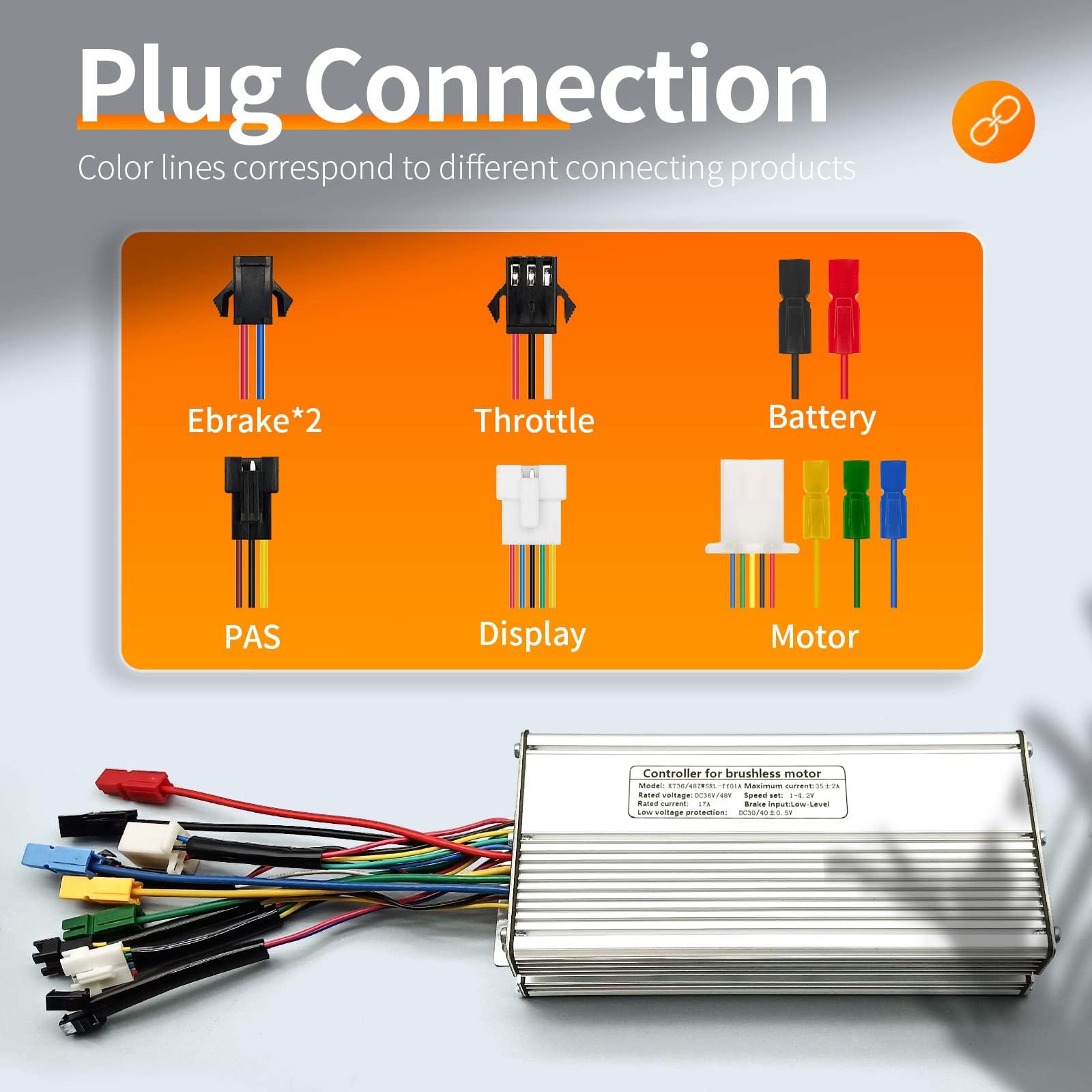

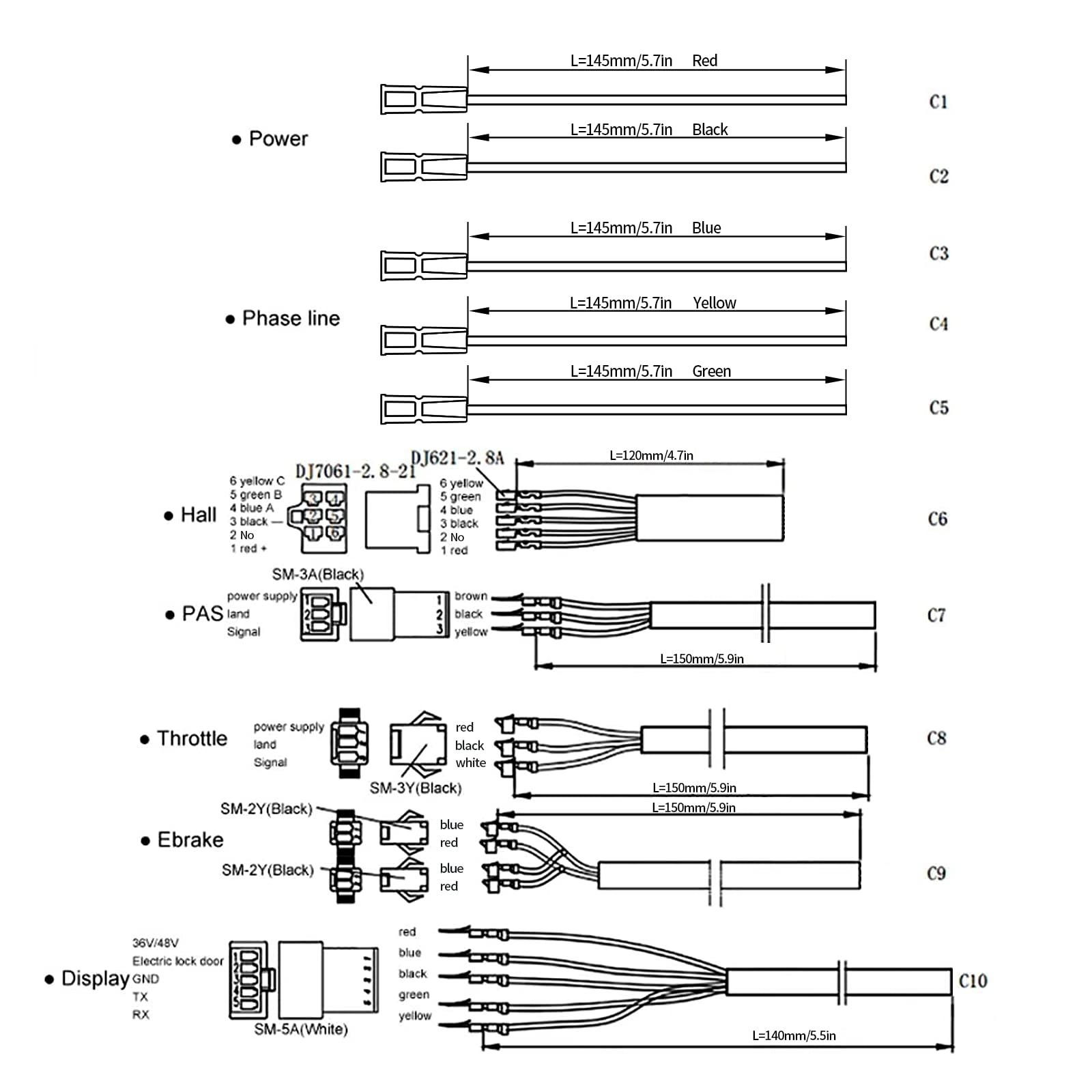

- Clear Connectors Each connector has its own characteristics, reducing confusion during installation. We've included pictures of each plug's name for your convenience.

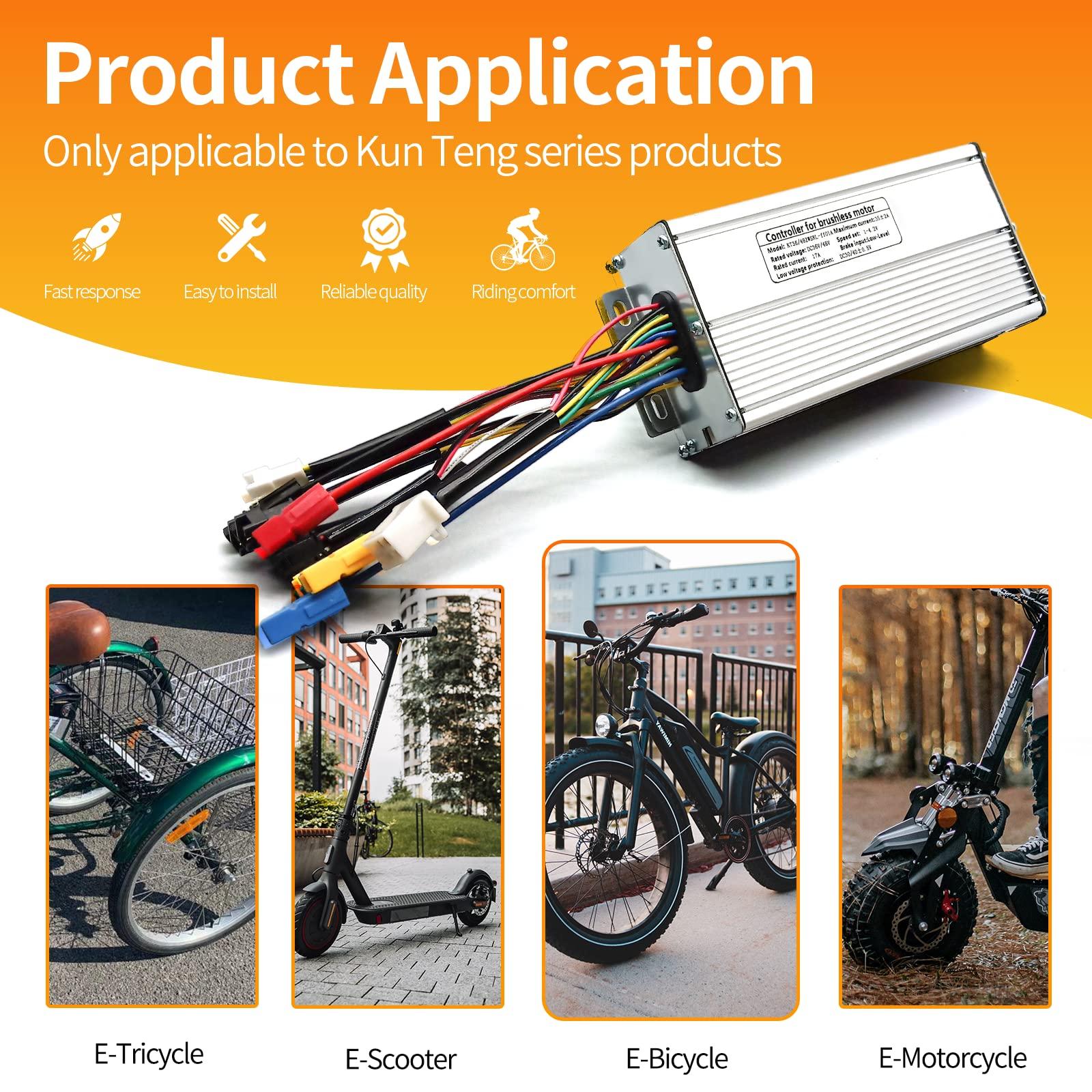

- Wide ApplicationThis electric bike brushless motor controller is suitable for 48V/52V mountain road bikes, electric motorcycles, etc.

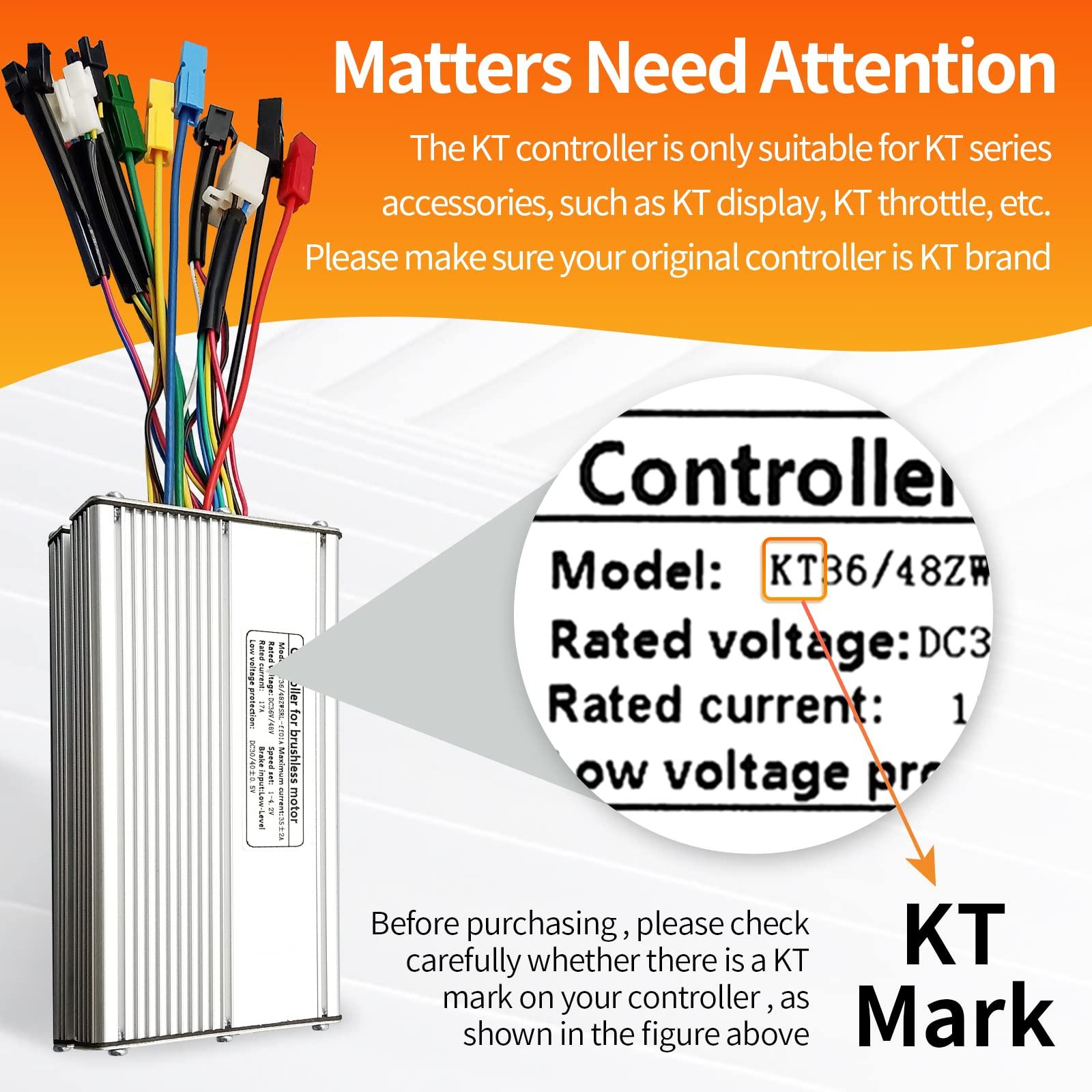

This controller is of KT brand and can only communicate with KT brand monitors. Please check if your controller and monitor model is "KT" to avoid malfunction.

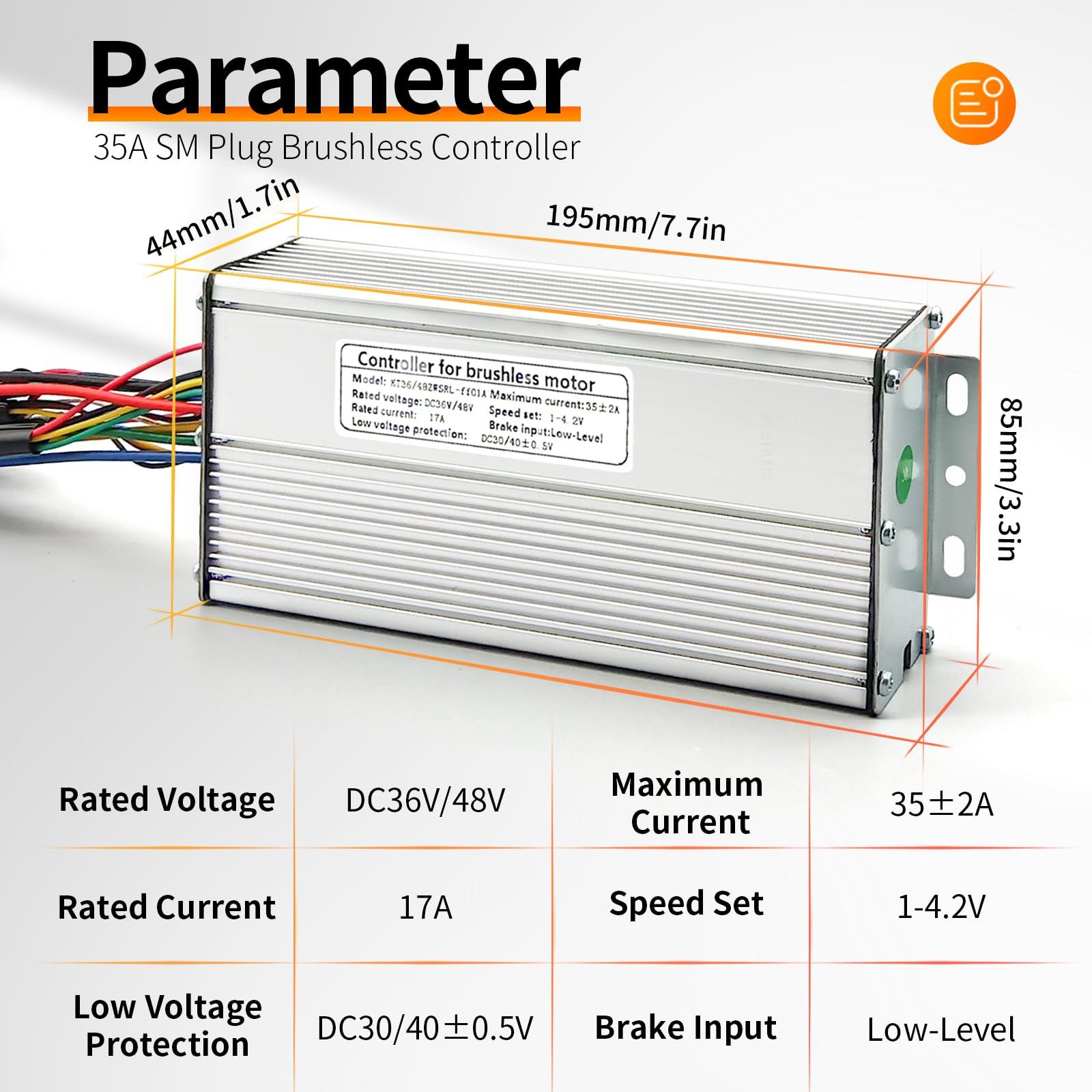

Controller Parameters: Brand :KT(KUTENG) Color :Silver Dimension :172*42*82mm Mosfet :12 Enhance Mosfets Maximum current :352A Rated current :17A Rated voltage:DC 36V/48V Speed set 1-4.2V Brake input: Low-Level Low voltage protection: DC30/400.5V Cable Length :all about 13-15cm Weight :525g
Support KT display If the controller is connected to the system, the display is normal, but the PAS cannot assist in normal work, please adjust the PAS parameters in the display, and it can be used normally after adjustment. If you don't have an instrument manual, please email me.
